Quick Details

  • Products Status: Stock
  • Type: Wireless
  • Application: home, hotel. enterprise, industral, Home WiFi, TV, DVB, Printer, IP Camera,Hotel WiFi
  • Function: Other
  • LAN Ports: Other
  • WAN Ports: 1
  • Certification: CE,FCC
  • Brand Name: VONETS
  • Model Number: VAR11N-300
  • Place of Origin: Guangdong, China (Mainland)
  • Protocol Standard: IEEE 802.11g. IEEE 802.11b. IEEE 802.11n
  • Size: 43mm x 43mm x 14mm (L x W x H)
  • Certificate: CE,FCC
  • OEM/ODM: Support
  • Weight: 78g
  • Distance: No barrier 100m
  • Color: White
  • Work Mode: WiFi repeater/WiFi bridge, wifi router model
  • Support: Mini wifi router, wifi bridge, wifi repeater

Packaging & Delivery

Packaging Details 100pcs/carton: 50x17x41cm
50pcs/carton: 50x17x21cm
Delivery Time 1 working day

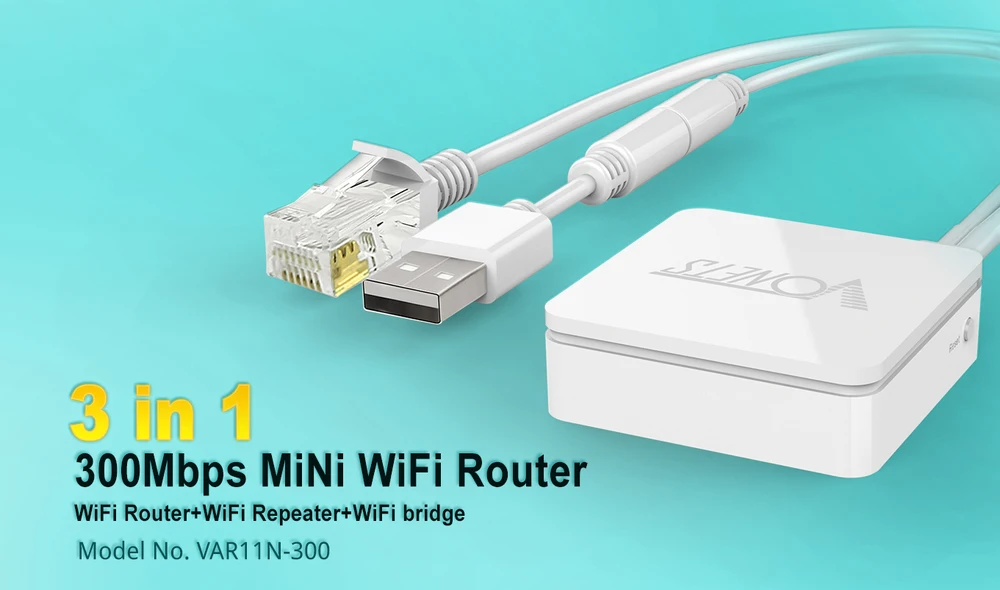

VAR11N-300 wifi router long distance




The Household and Hotel Best WiFi Router

             ---VAR11N-300 WiFi Router

  • Hotel Wired to WiFi,Business trip essential
  • The first wide power input (DC5V) WiFi bridge, no need dedicated power supply
  • Together with WiFi Bridge and WiFi Router function
  • Support WPA-PSK/WPA2PSK,64/128
  • WEP Security mechanism
  • Support 802.11N WiFi transfer protocol, 150Mbps rate of transmission










VAR11N-300 is the professional mini WiFi router , and together with mini WiFi repeater and WiFi

intelligent bridge that is elaborately developed by HouTian Network, the original creation D/A

temperature compensated auto frequency control technology(TAFC), it solved the

common failing of the traditional wifi router or wifi products that easily drop the network, make

sure the lasting stability to ensure that the WiFi signal is not dropped.



It is as an ecology and safe WiFi repeater.  It is different from the traditional method that use

increased the wireless transmitter power (it will generate a strong harmful radiation) to expand

the distance of wireless transmission, but in WiFi signal coverage of failure point, place thise

device as a WiFi signal repeater to re-enlarge the weak WiFi signal, and during not increasing

the wireless transmitter power, expand WiFi signal coverage, safe and ecology, it is very

useful for home or office safe WiFi signal coverage .



Please see the following main features:

1.Adopt the original creation D/A temperature compensated auto frequency control

   technology(TAFC), make sure the lasting stability to ensure that the WiFi signal is not dropped

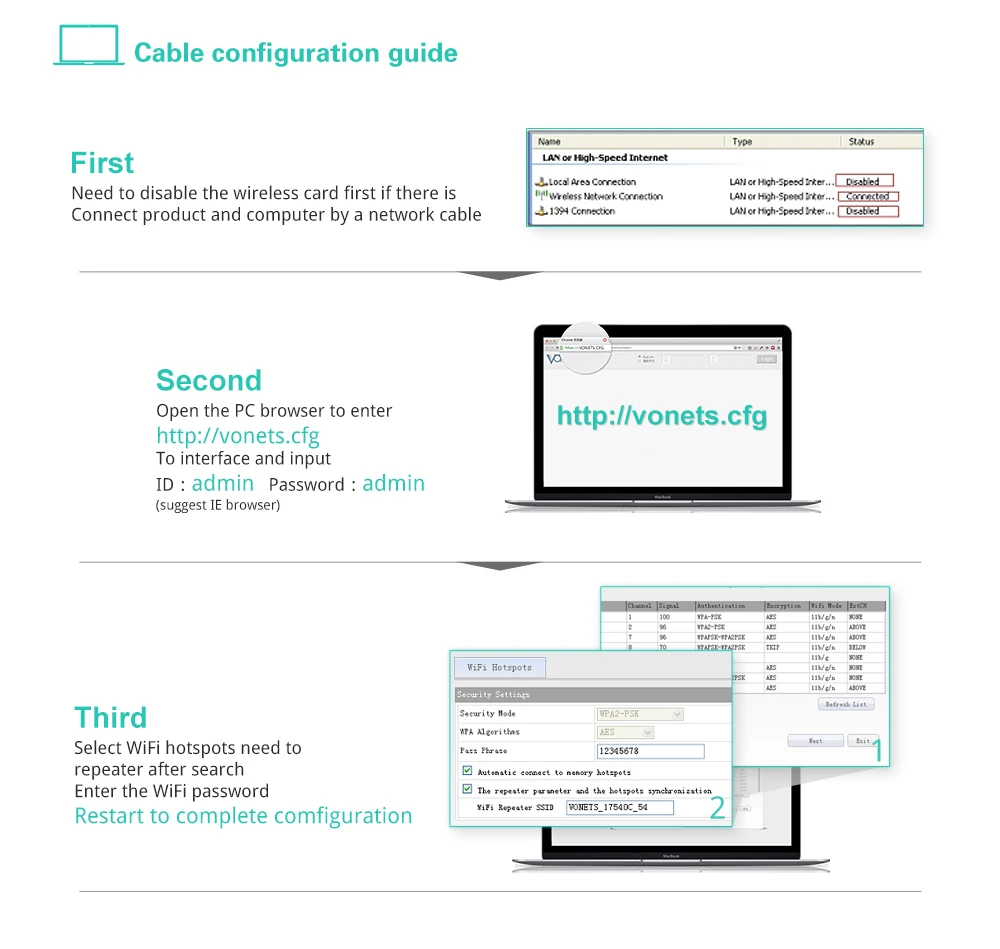

2.Original creation VDNS virtual domain configuration technology to solve the user’s trouble of

   configuration.

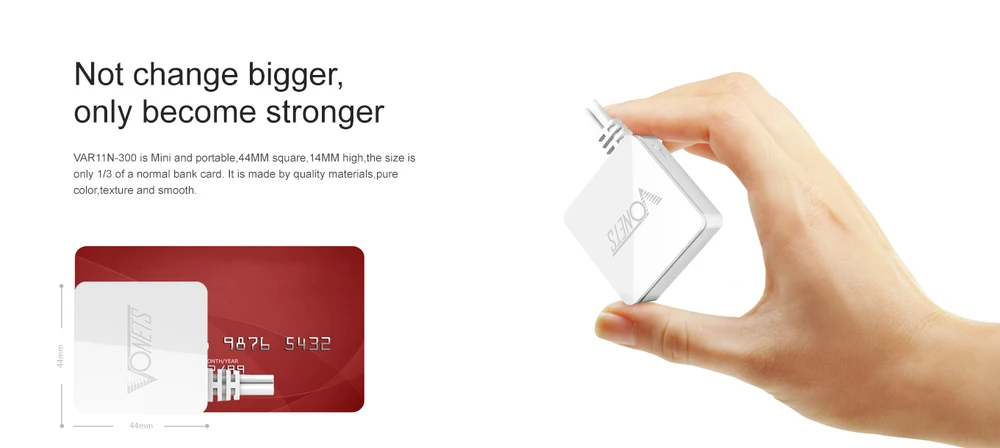

3.The world’s smallest WiFi router, the whole size is less than one-half of the Bank card, very useful

   for both business trip and household.



4.The first wide power input (DC5V) WiFi bridge, no need dedicated power supply, most of mobile

    phone power supply, LCD TV USB port and other devices power supply and so on, can be used

    for its power supply input to reduce electronic waste generated.



5.Low power, the whole power supply less than 4W, dedicated designed parallel DC power outlet

   and DC power cable, it is convenient to share power supply with other devices.



6.Dedicated power supply cable together with Ethernet cable two in one cable connector, reduce

   redundant connector, convenient for usage.

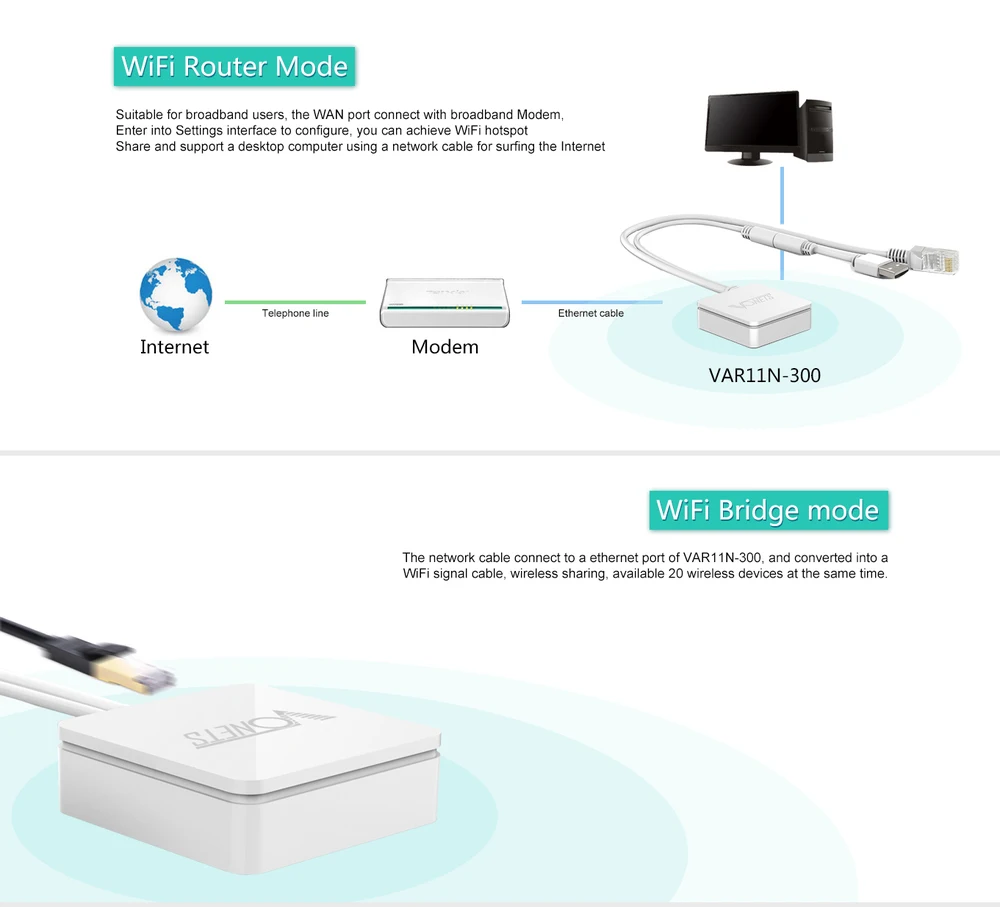

7.Support WiFi router mode and WiFi intelligent bridge mode, one key switching device working mode



8. In WiFi intelligent bridge mode, it can intelligent control the device WiFi mode:
    WiFi AP Client (it can be used for access from WiFi to wired Ethernet)
    WiFi Hotspot (it is suitable for hotel room usage)
    WiFi Repeater (it can extend the distance of WiFi signal coverage, ecology and safe)



9.In WiFi intelligent bridge mode, it supports WiFi hot spot scan automatically and WiFi hot spot

   memory function.

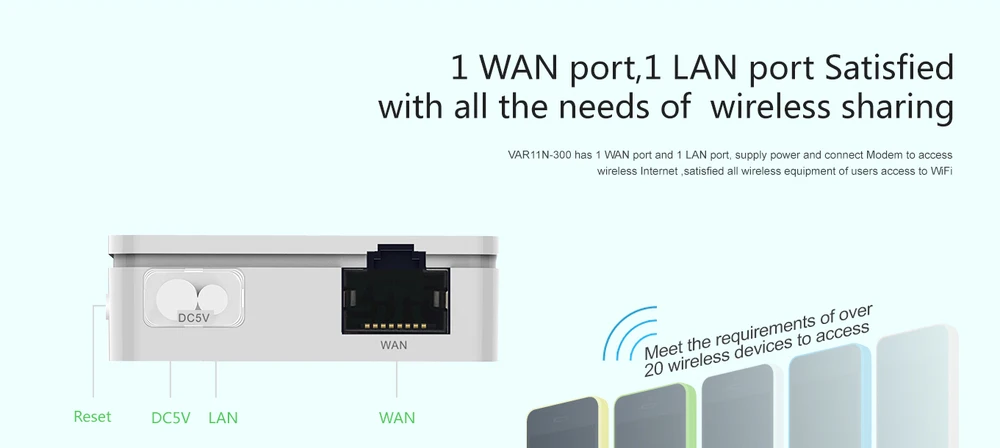

10.1 WAN, 1 LAN, two ports can interchangeable, such small volume has two ports, so unusual.



11.Support 802.11N WiFi transfer protocol, 300Mbps rate of transmission



12.Good compatibility, almost compatable with all of the smartphone, tablet computer, notebook,

     netbook and WiFi devices.



Hardware Spec
Protocol Standard
   IEEE 802.11g. IEEE 802.11b. IEEE 802.11n
rate of transmission
   300Mbps
Interface
   1 10/100M adaptive Ethernet female port

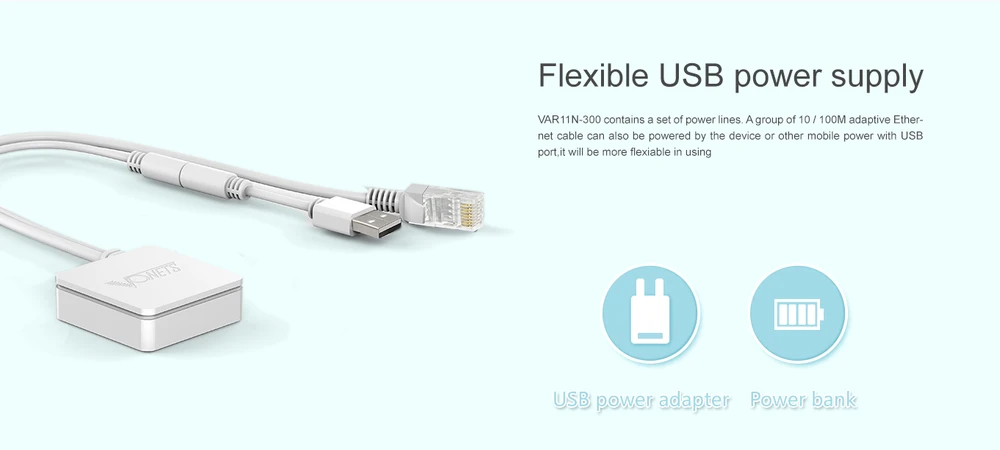

   1 dedicated two in one power supply cable, with a set of power
   supply and a set of 10/100M adaptive Ethernet cable
   Ethernet cable and Ethernet LAN/WAN interchangeable
Button
   Reset button (Long press)

LED
   Status instruction:
   Ethernet port status Light
   ethernet cable status Light
   work mode status Light

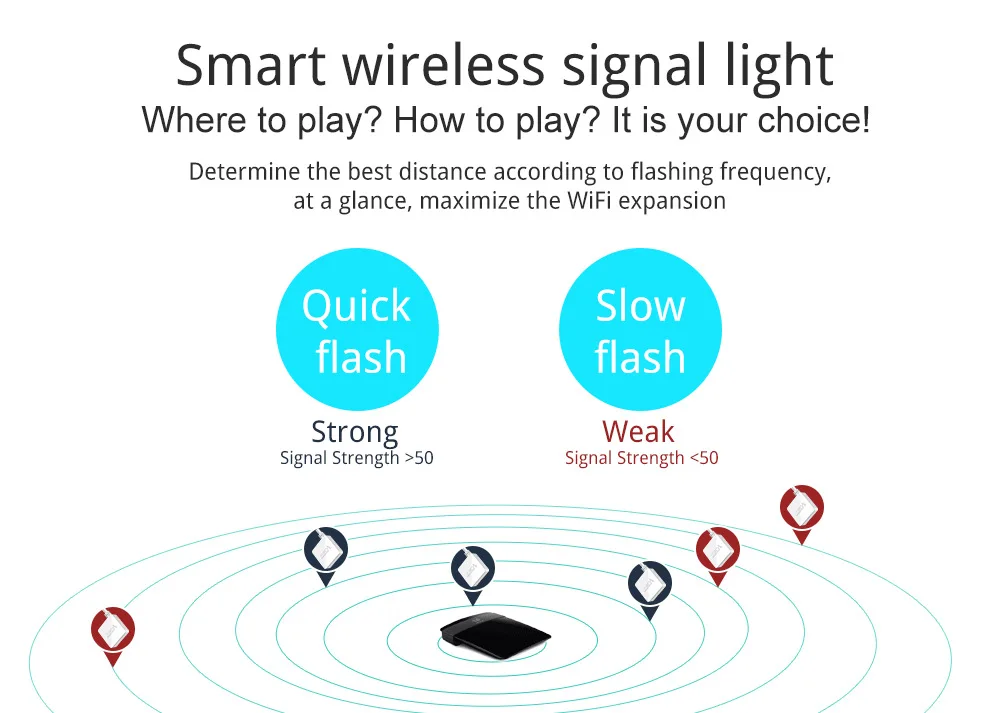

   WiFi status Light
Antenna
   Built-in Intelligent Omnidirectional antenna
Size
   43mm x 43mm x 14mm (L x W x H)


Wireless Related
Basic Function
   Wireless Switch
   SSID Broadcast switch
   Channel option: 1-14
   WiFi mode option: 802. 11n only,  802.11 B/G/n mixed,  802.11    B/G mixed, 802.11G only,  802.11B only.
   WiFi Hotspot scan automatically
   WiFi Hotspot memory
Working Mode
   WiFi Intelligent bridge mode:
      AP Station mode (WiFi hotspot), suitable for hotel room usage
      AP Client mode (WiFi client), suitable for IP TV, STBs.

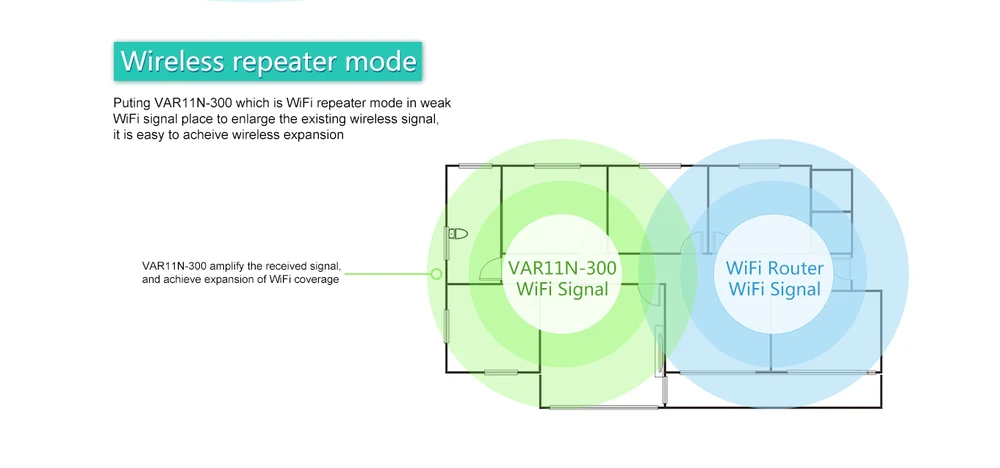

      Repeater mode (WiFi signal repeat), it can extand the
      distance of WiFi transfer
      WiFi router mode
Wireless security
   WiFi MAC address filter
   WiFi Security function switch
   64/128/WEP encryption
   WPA-PSK/WPA2-PSK,WPA/WPA2 security mechanism
Wired Related
WAN port Setting
   WiFi router mode:
      WAN port connection type support: PPPoE, Dynamatic IP, Static IP, L2TP, PPTP
   DDNS Client
Firewall
   WiFi router mode:
      IP and MAC address binding against  ARP attacks (WiFi router mode support)
      IP address filter (WiFi router mode support)
      Domain filter (WiFi router mode support)
      Mac address filter
Forward rules
   Port forwarding (WiFi router mode support)
   Virtual Service (WiFi router mode support)
   DMZ Host
System function
   Firmware upgrade
   Device reboot
   Reset factory
   Administrate account and password revise
